กล้องถ่ายภาพความร้อน HighSense Laserliner Germany รุ่น ThermoCamera
คุณสมบัติสินค้า:
SKU : ThermoCamera
หมวดหมู่ : กล้องถ่ายภาพความร้อน ,
แบรนด์ : Laserliner
Share
- The ideal solution for detailed image analysis and identifying extremely small temperature differentials using high-resolution infrared microbolometer sensors
- Versatile applications in construction work, and electrical and mechanical engineering

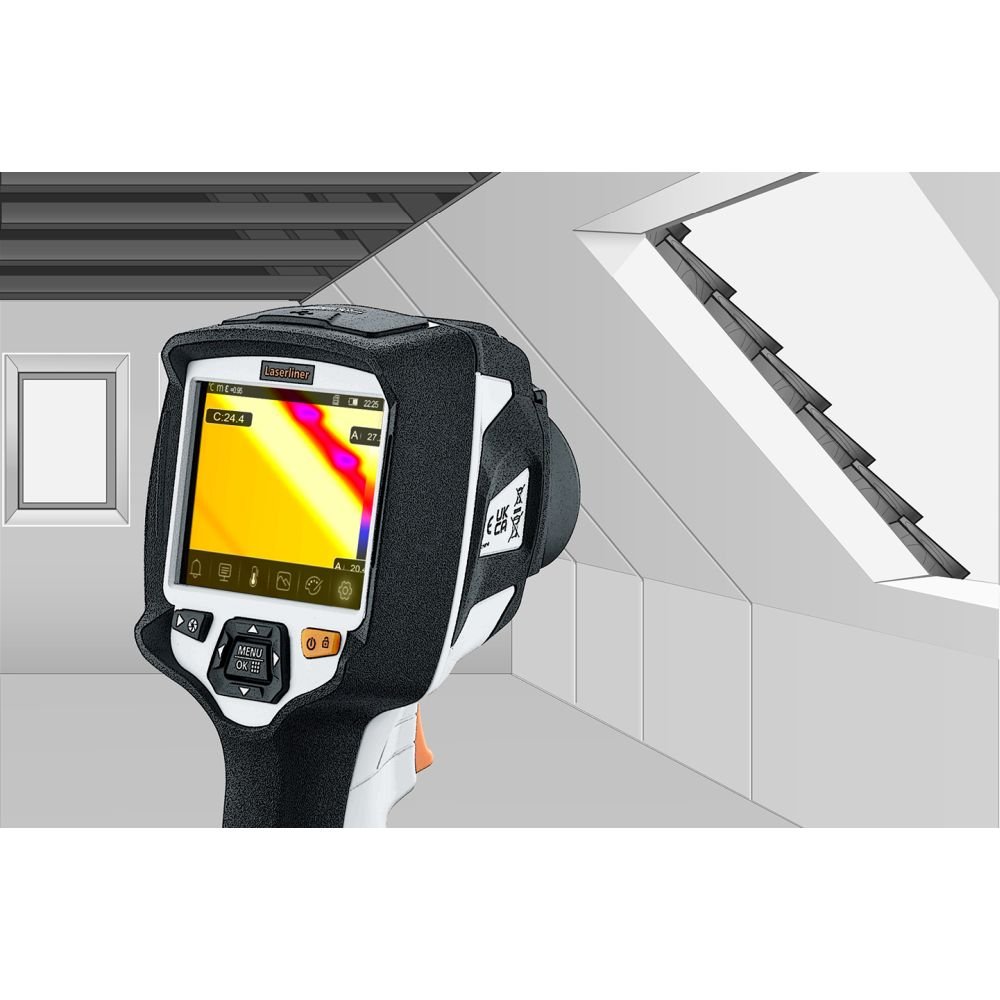

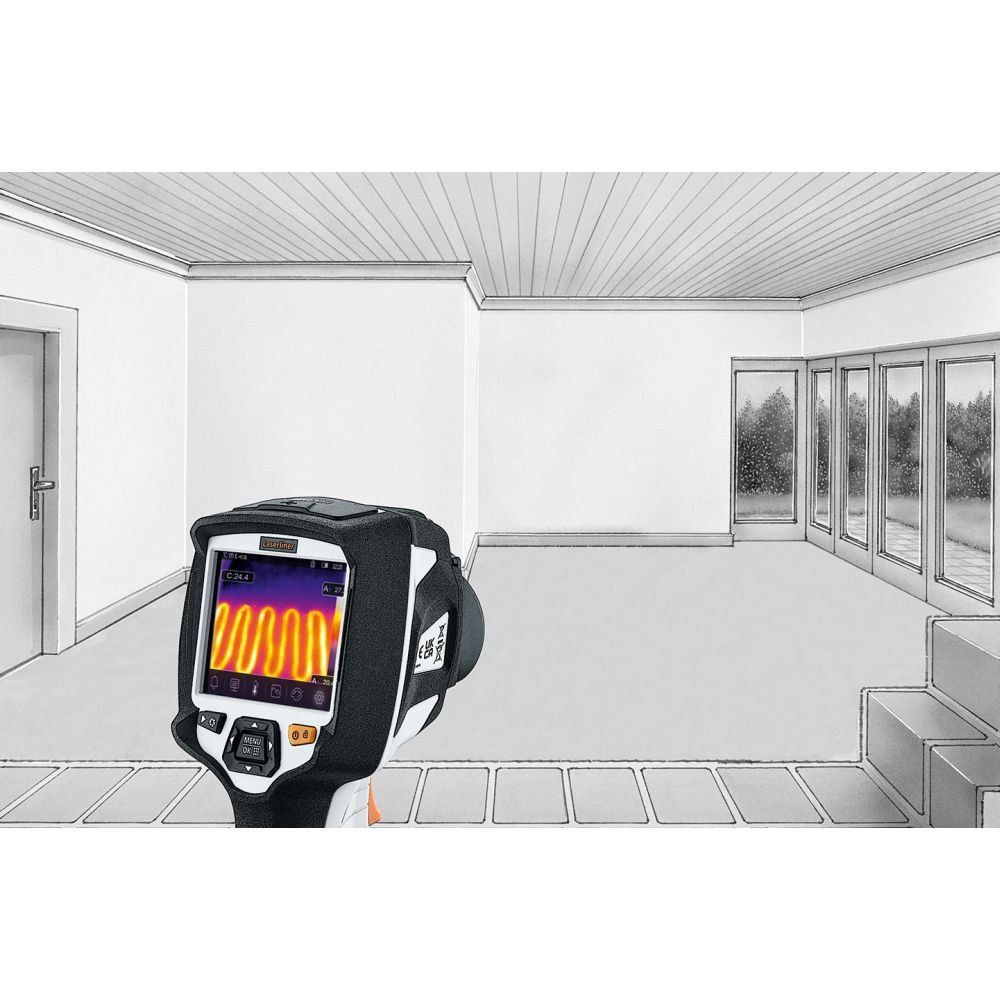

- High thermal sensitivity, ideal for building thermography, for identifying thermal bridges, damp spots, failed insulation, overheating, analysis of heating pipes, identifying defective solar cells
- Optimal image quality through precise automatic calibration and manual focus
- Loadable CustomApps for rapid preconfiguration for standard applications: Identify extreme temperature points, air leaks, visualise temperatures flows, etc.
- Comprehensive range of functions: Measurement of hot and cold spots, measurement at three points, in three areas, or horizontal/vertical lines
- Comprehensive analysis using infrared image and MIX image (automatic overlay of infrared and digital images)
- Appropriate representation of recorded infrared temperatures using 8 standard and 4 special colour palettes
- Versatile control by touchscreen and buttons
- Long operating life due to second battery pack included in the scope of delivery
- Easy addition of text notes using editor function
- Image and video storage on exchangeable micro-SD card

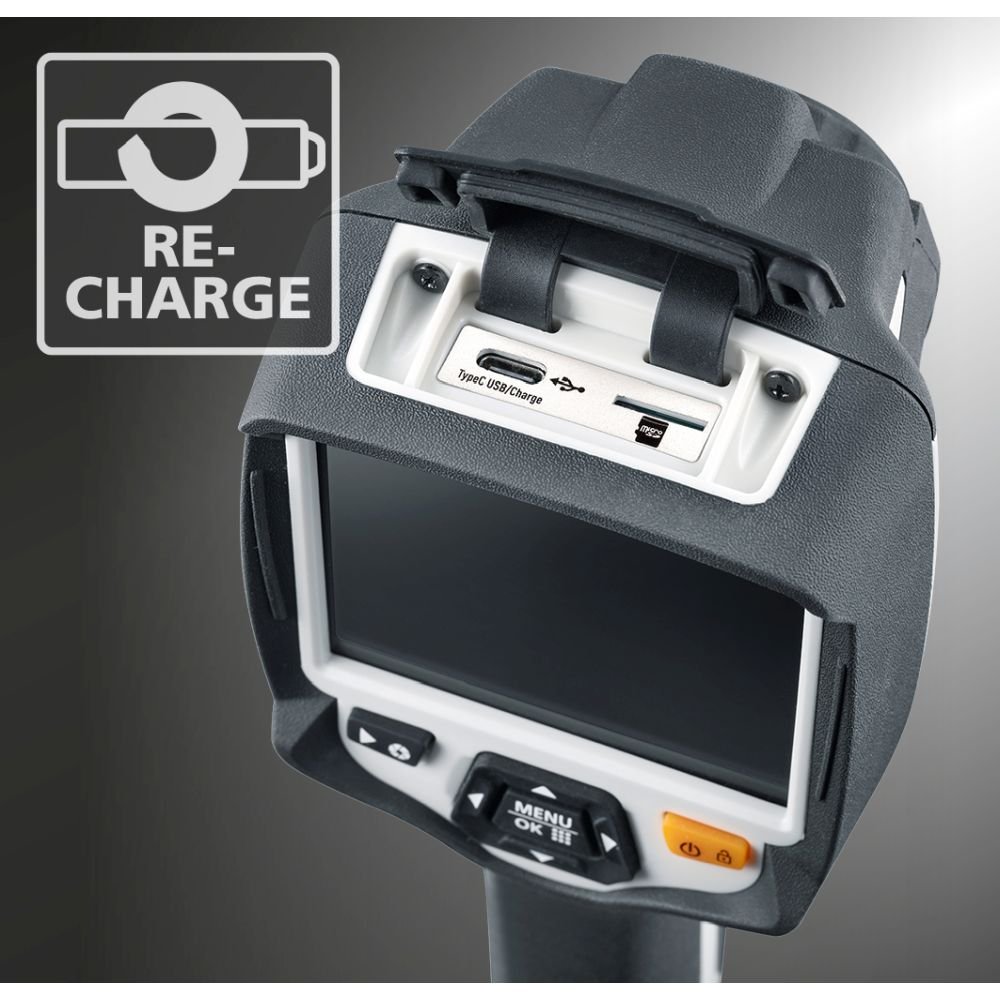

- Rapid transfer of measured data to PC via USB-C interface or to iOS or Android smart phone via WLAN interface
- Stepless adjustment of 32x zoom to view details
- Device fits well in the hand due to compact ergonomic design
- Suitable for fitting on tripods with a 1/4” thread
- IP 54: dust and splash proofing
- High-quality radiometric Windows PC software free to download for documentation, further editing and data evaluation
- Free Laserliner HighSense app for documentation, editing and evaluation on iOS and Android smart phones

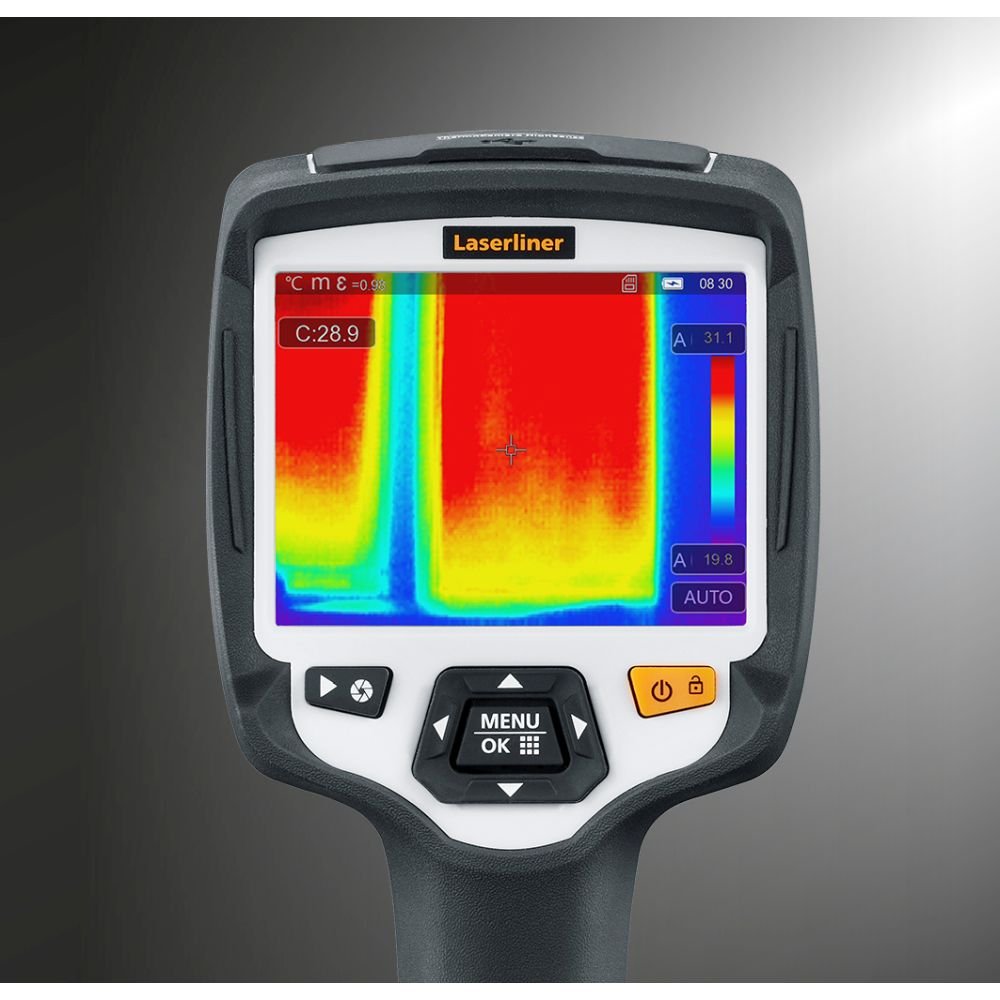

- Large, easy-to-read colour display
- 10 available languages
| Thermal image | ✅ |
| Digital camera | ✅ |
| MIX image | ✅ |
| Min/max/centre measurement value | ✅ |
| Digital zoom | ✅ |
| Adjustable emissions level | ✅ |
| Adjustable focus | ✅ |
| CustomApps | ✅ |
| Data transfer | ✅ |
| Measured Variable | Infrared temperature |
| Features | Point Alarm Image recording Real-time video transmission CustomApps min./max. Line Area Temperature range manual / automatic / Histogram Video recording USB mass storage |
| Screen Type | 3,5" TFT-Display |
| Sensor Type | uncooled microbolometer |
| Auflösung IR-Sensor | 160 x 120 pixels |
| Display Resolution | 640 x 480 pixels |
| Spectral Range | 8-14 µm |
| Image Frequency | 9 Hz |
| Thermal Sensitivity (NETD) | NETD 0.05°C (50 mK) @ 30°C |
| Measuring Range Infrared Temperature | -20°C … 150°C, 0°C … 650°C |
| Accuracy Infrared Temperature | ± 2°C or 2% of measured value |
| Infrared Temperature Resolution | 0.1°C |
| Power Supply | Li-ion battery pack 3.7V / 2.6Ah |
| Operating Time | approx. 4 hours |
| Battery Recharging Time | approx. 4 hours |

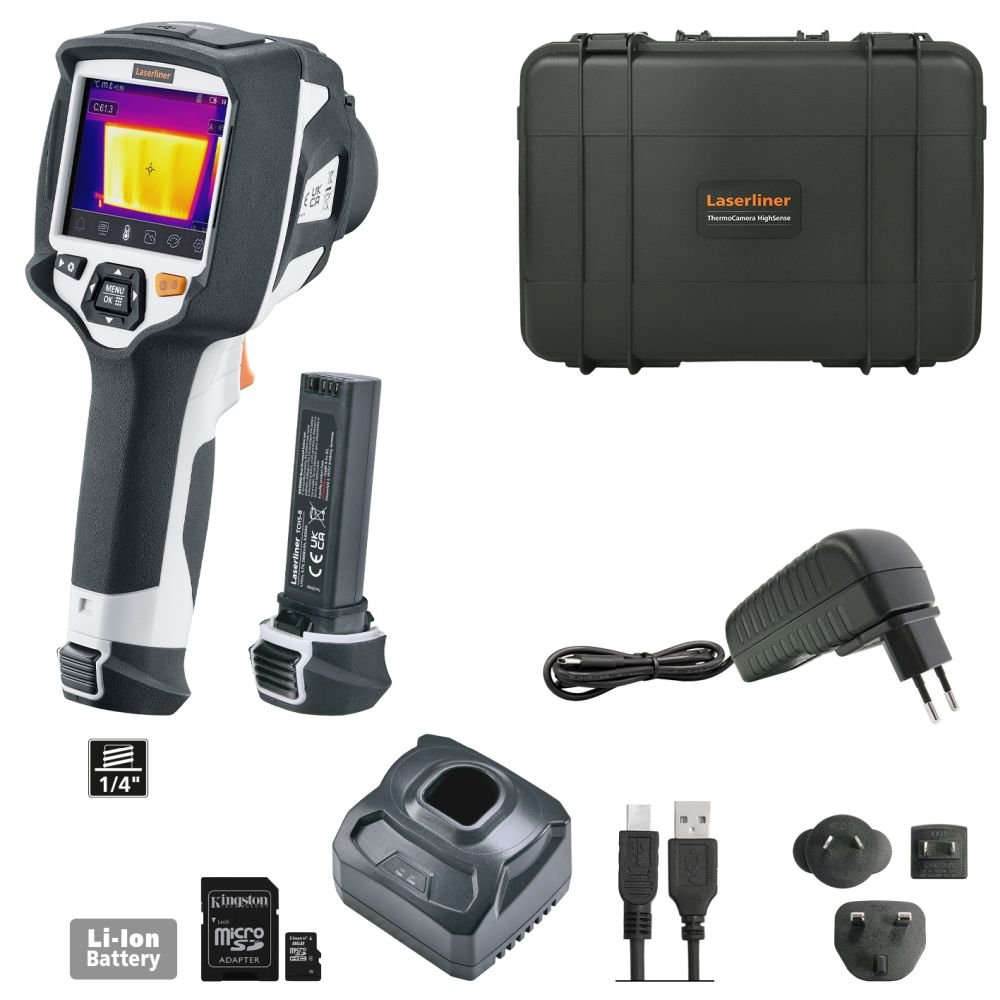

Scope of delivery
- ThermoCamera HighSense
- 2 x Li-ion battery pack
- charging cradle with power supply/charger and international adapters
- USB cable
- 8 GB micro SD card with adapter
- carrying case
