กล้องถ่ายภาพความร้อนขั้นสูง Pro Laserliner Germany รุ่น ThermoVisualizer
คุณสมบัติสินค้า:
SKU : ThermoVisualizer
หมวดหมู่ : กล้องถ่ายภาพความร้อน ,
แบรนด์ : Laserliner
Share

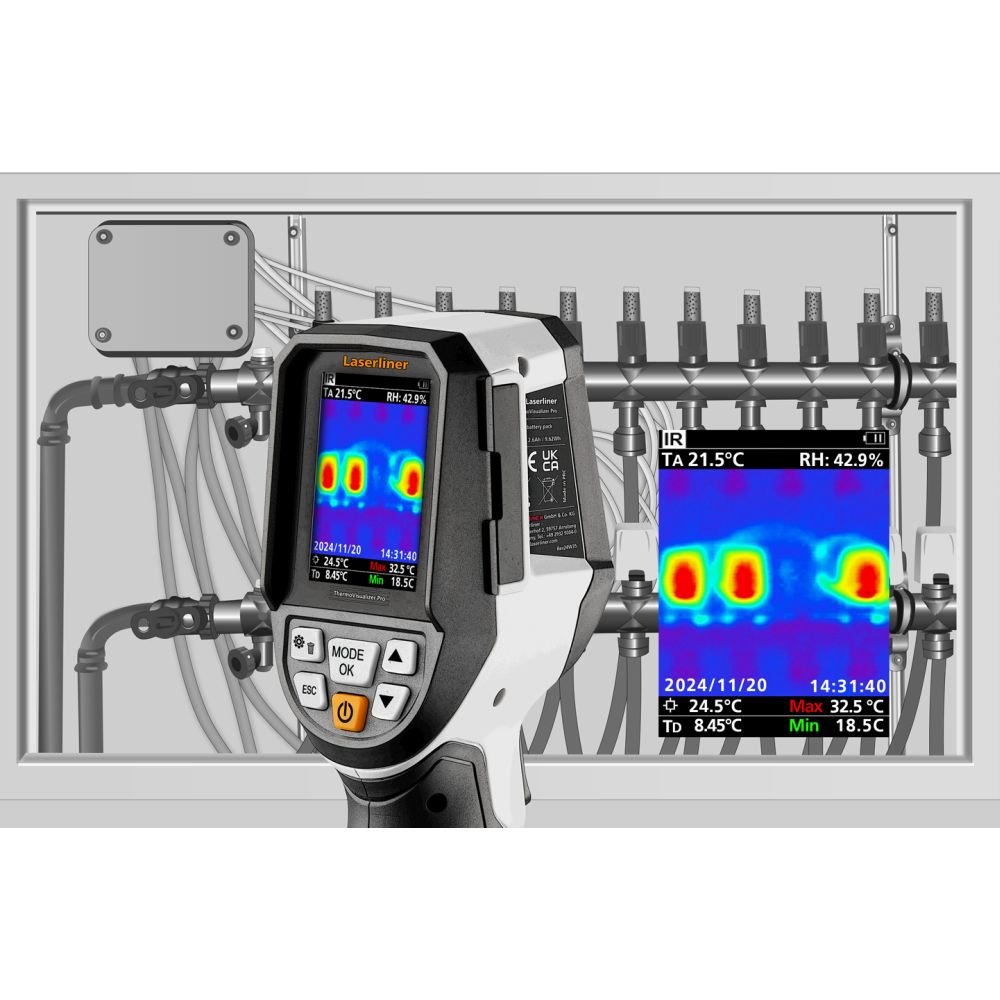

- Reliable visualisation of temperature curves, energy loss, thermal bridges and electrical and mechanical overloads
- Determining surface temperatures, relative humidity, ambient temperature and dew point temperature

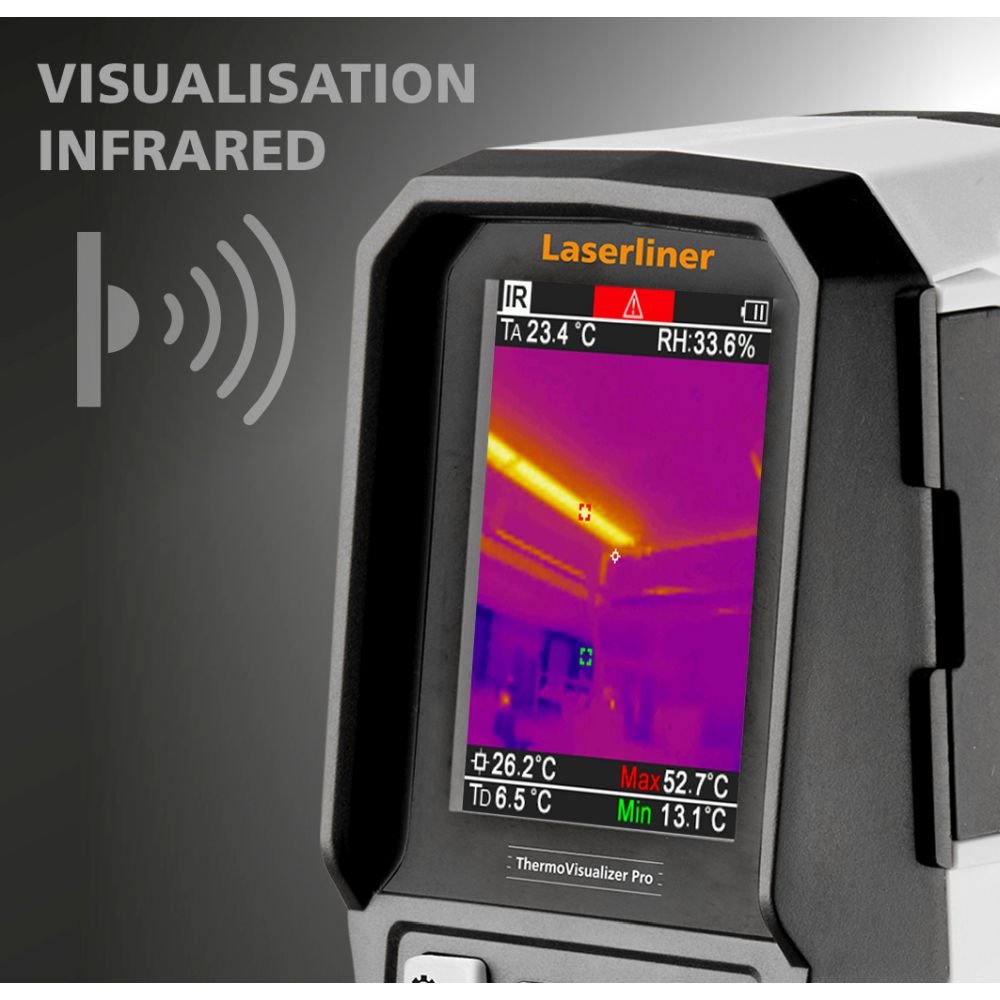

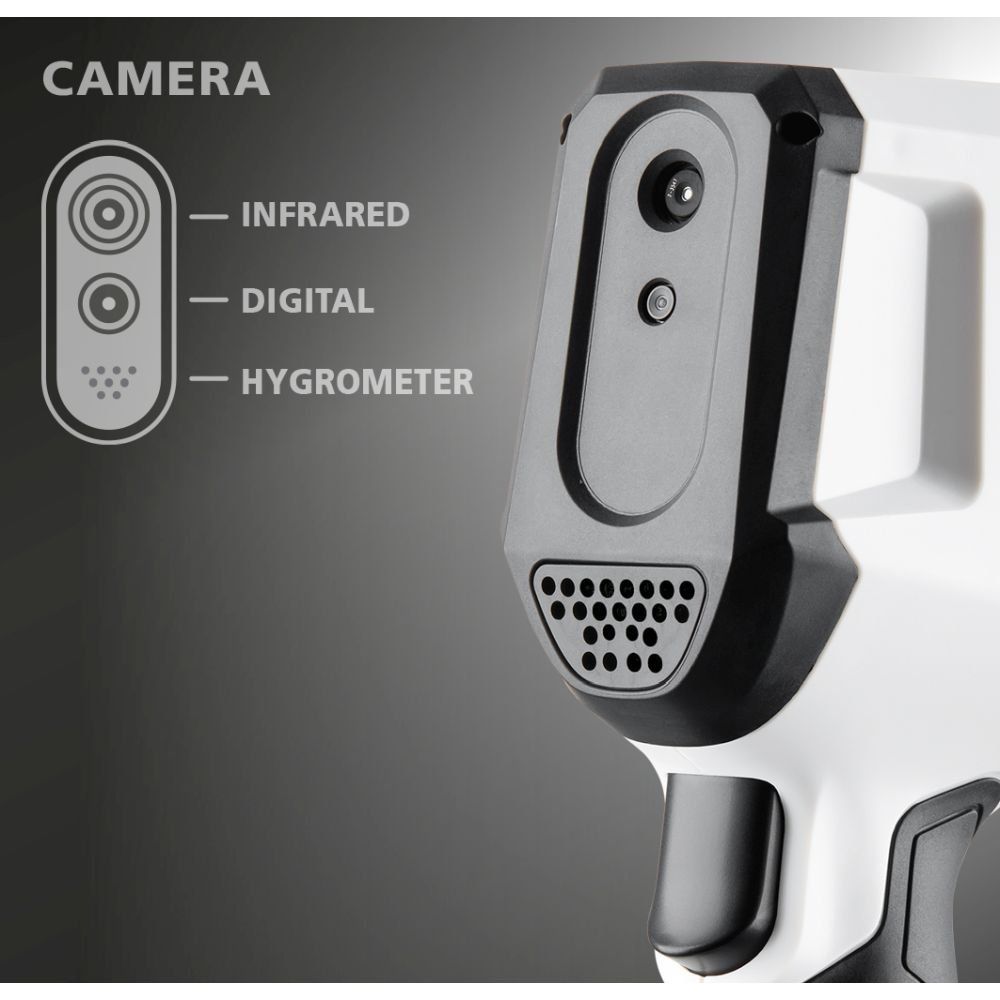

- Flexible display with infrared image, digital image and mix image

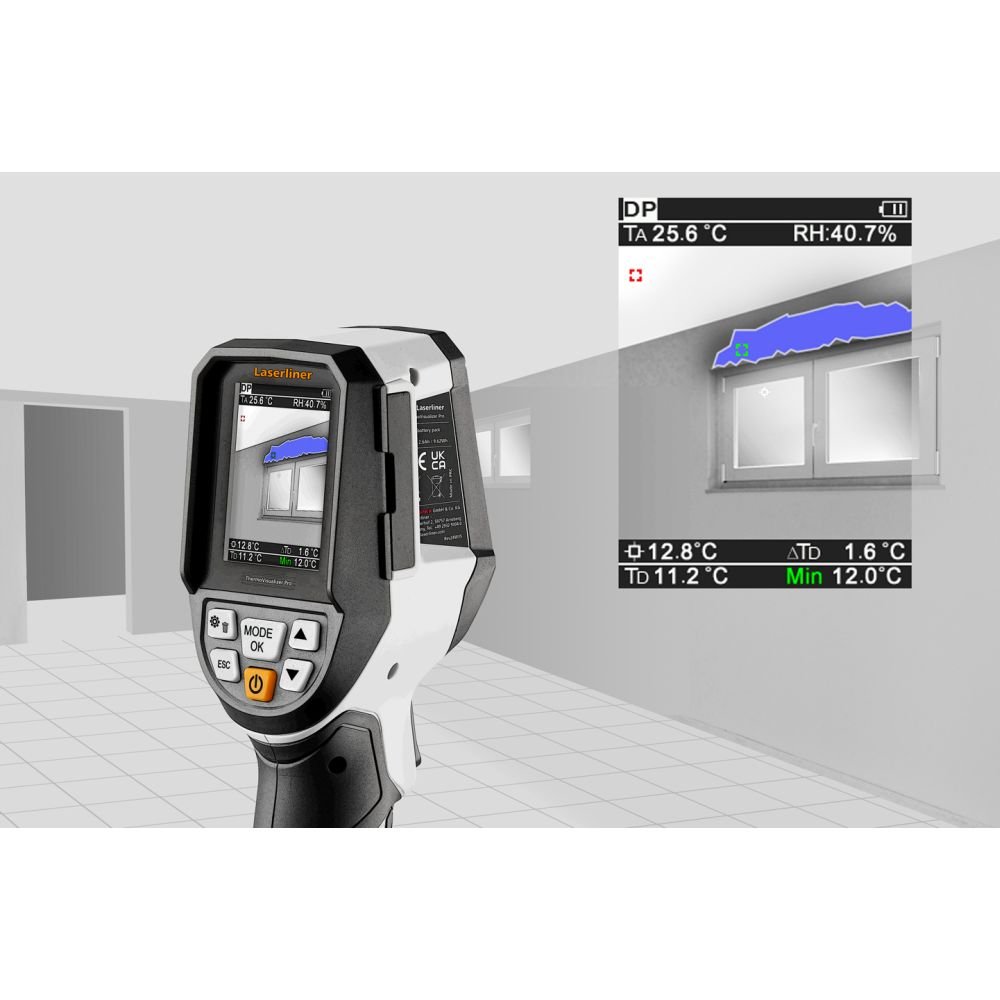

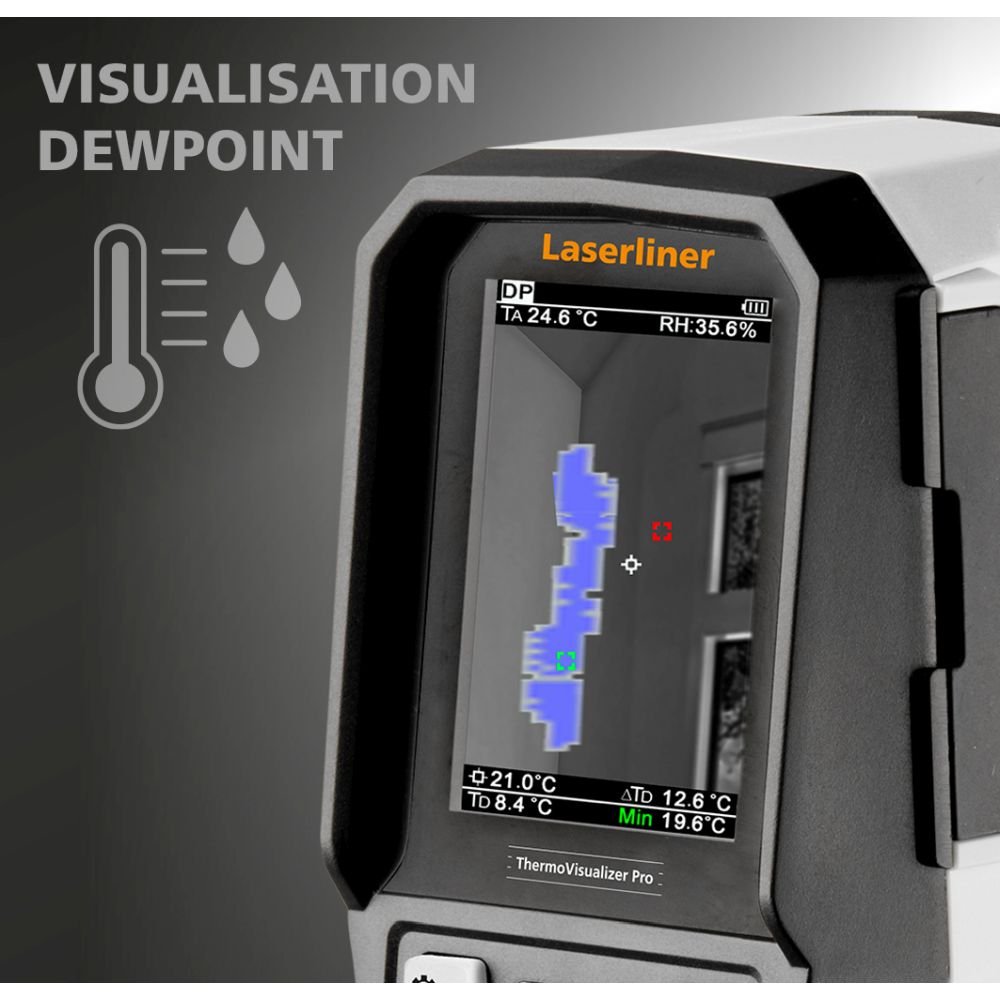

- Visual dew point function for precise marking of surfaces that have reached or fallen below the dew point
- Perfect for critical interior space inspections, for example to detect condensation and with a clear thermal bridge warning

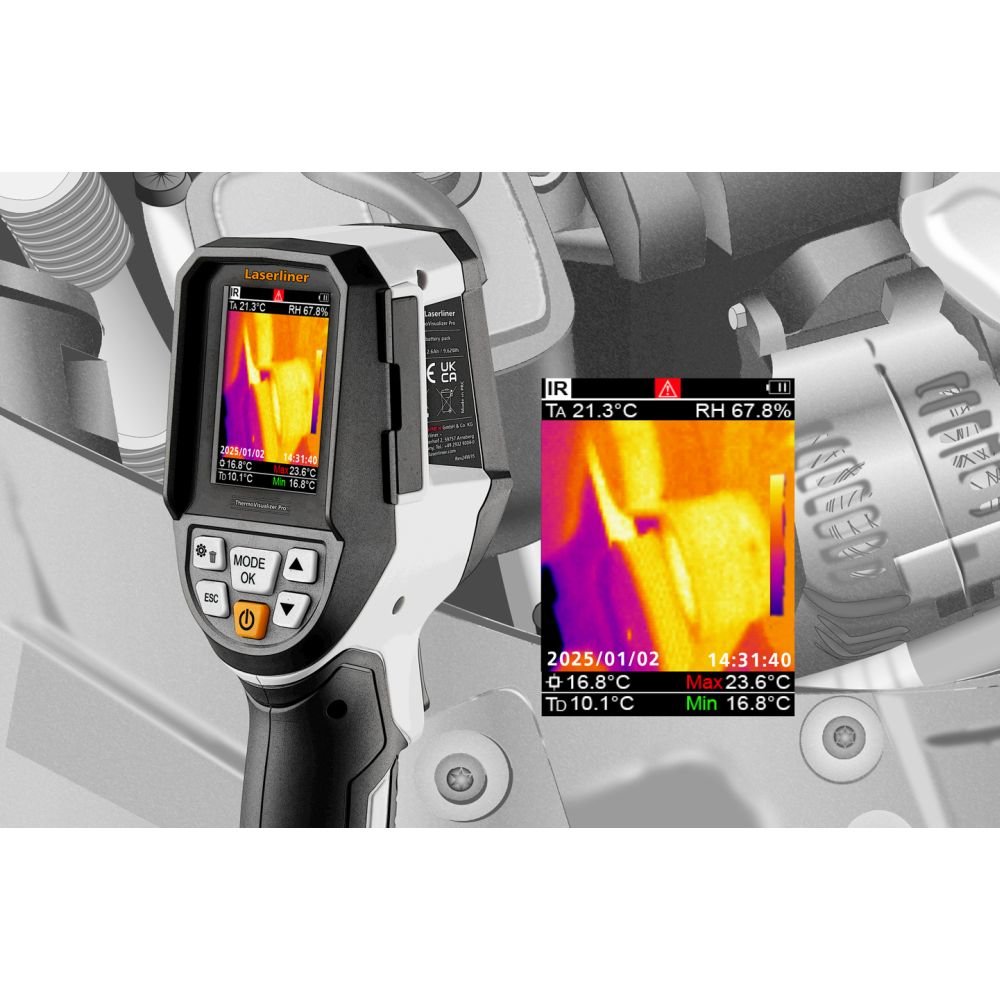

- Versatile: Building inspections, electrical systems, machines, heating and ventilation engineering, locating heat sources and cold spots

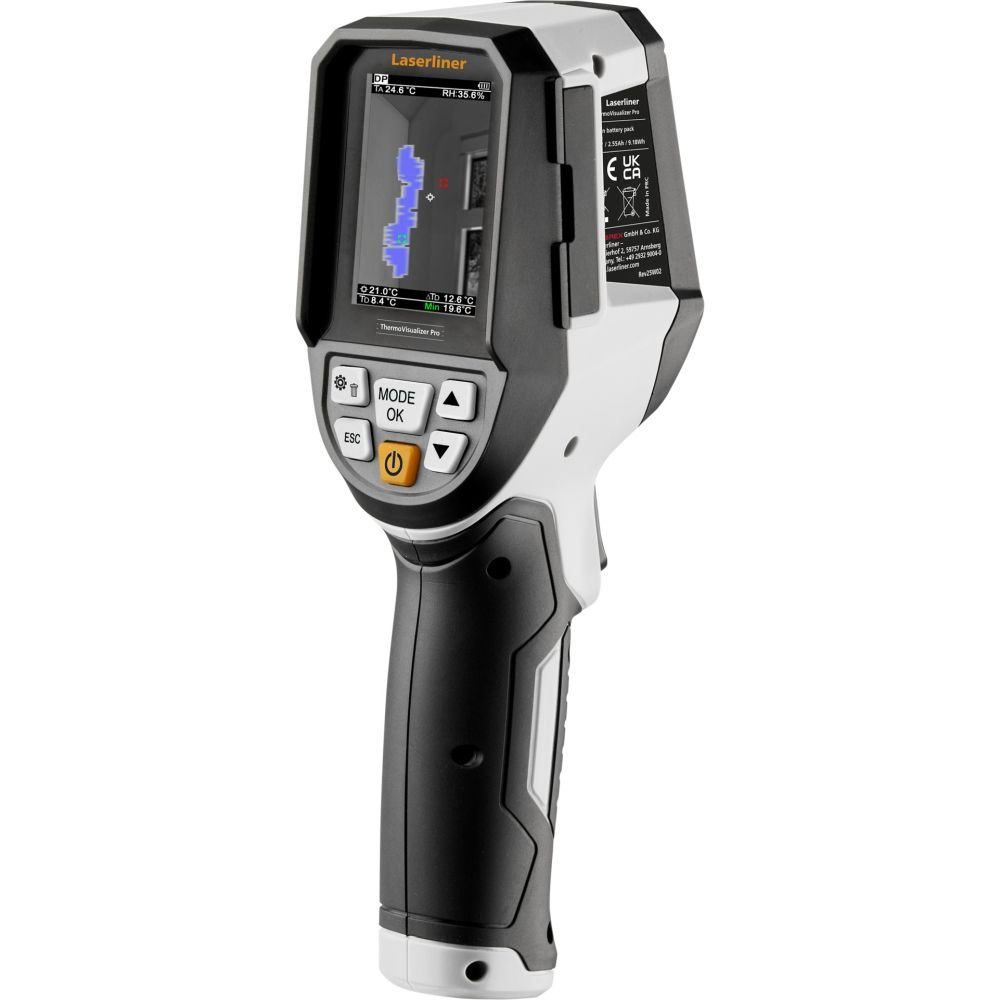

- Device fits well in the hand due to compact ergonomic design
- Suitable for fitting on tripods with a 1/4” thread
- IP 54: dust and splash proofing
- High-contrast TFT colour display

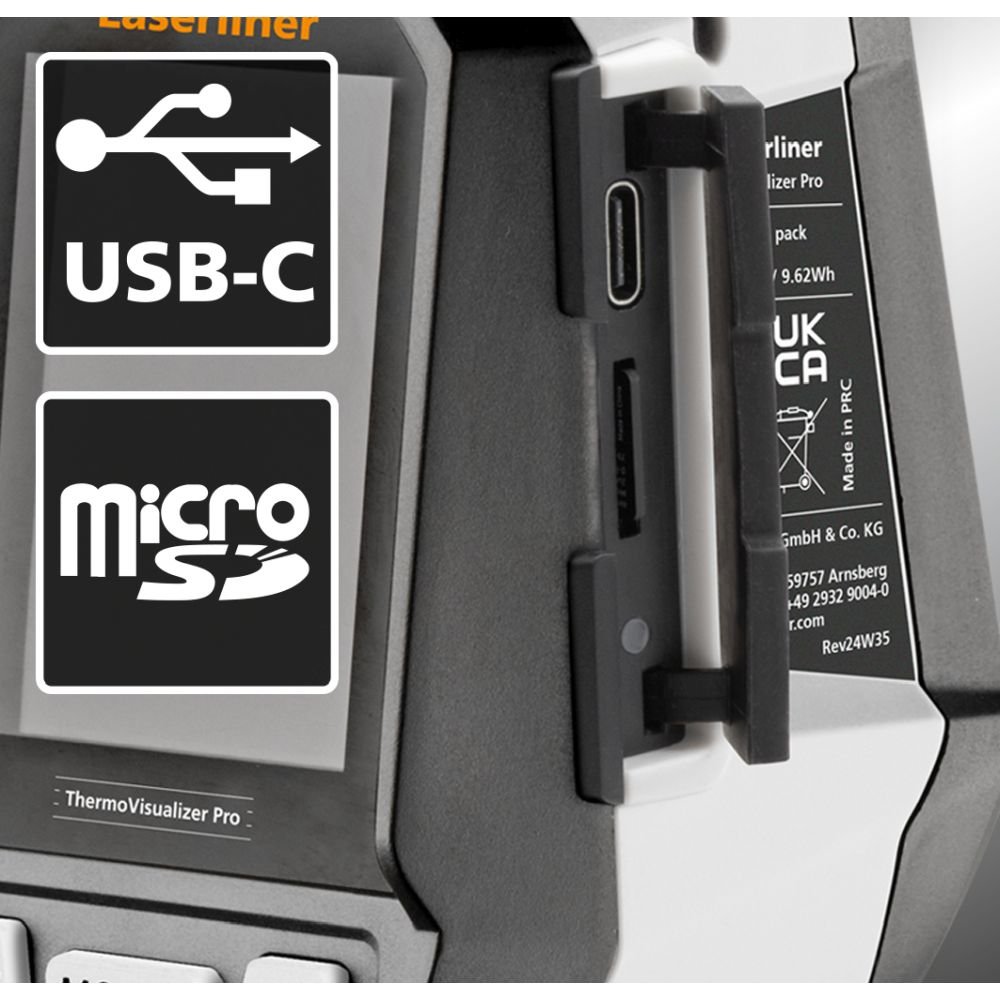

- Evaluation and documentation using micro SD card and USB-C interface
- Auto power off
| Image recording | ✅ |
| Data transfer | ✅ |
| Digital camera | ✅ |
| Time stamp | ✅ |
| Adjustable emissions level | ✅ |
| Humidity | ✅ |

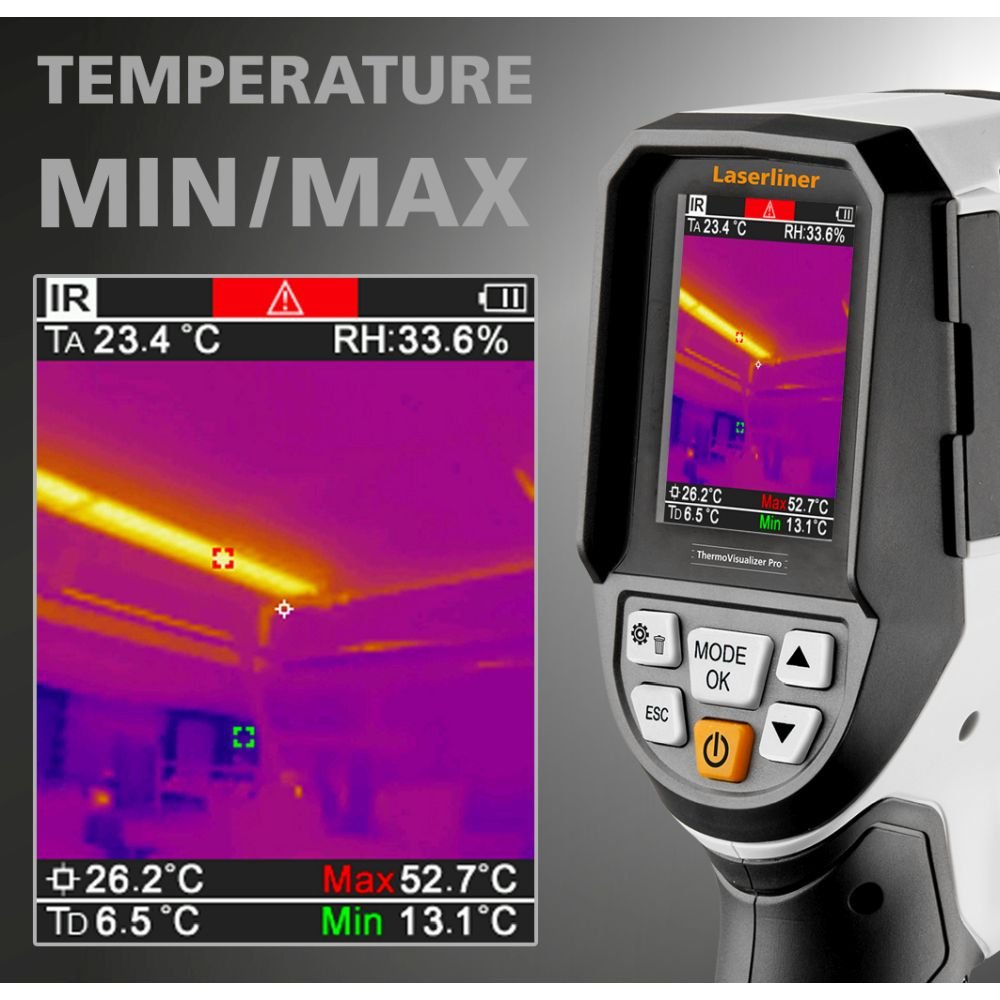

| Min/Max | ✅ |
| MIX image | ✅ |
| Ambient temperature | ✅ |
| Thermal image | ✅ |
| Thermal bridge warning | ✅ |
| Dew point temperature | ✅ |
| Mains operation | ✅ |
| Measured Variable | Infrared temperature relative humidity Ambient temperature Dew point temperature |
| Features | Thermal bridge warning Image recording Real-time clock MIN/MAX Dew point USB mass storage |
| Screen Type | 2,4" Colour TFT |
| Sensor Type | uncooled microbolometer |
| Display Resolution | 320 x 240 pixels |
| Image Frequency | 9 Hz |
| Thermal Sensitivity (NETD) | 60 mK @25°C |
| Measuring Range Infrared Temperature | -20°C … 150°C, 0°C … 400°C |
| Accuracy Infrared Temperature | ± 2 °C (0°C … 40°C) ± 4 °C or 3 % (<=0 °C, >40 °C) |
| Power Supply | Li-ion battery pack 3.6V / 2.55Ah / 9.18Wh |
| Operating Time | approx. 4 hours |

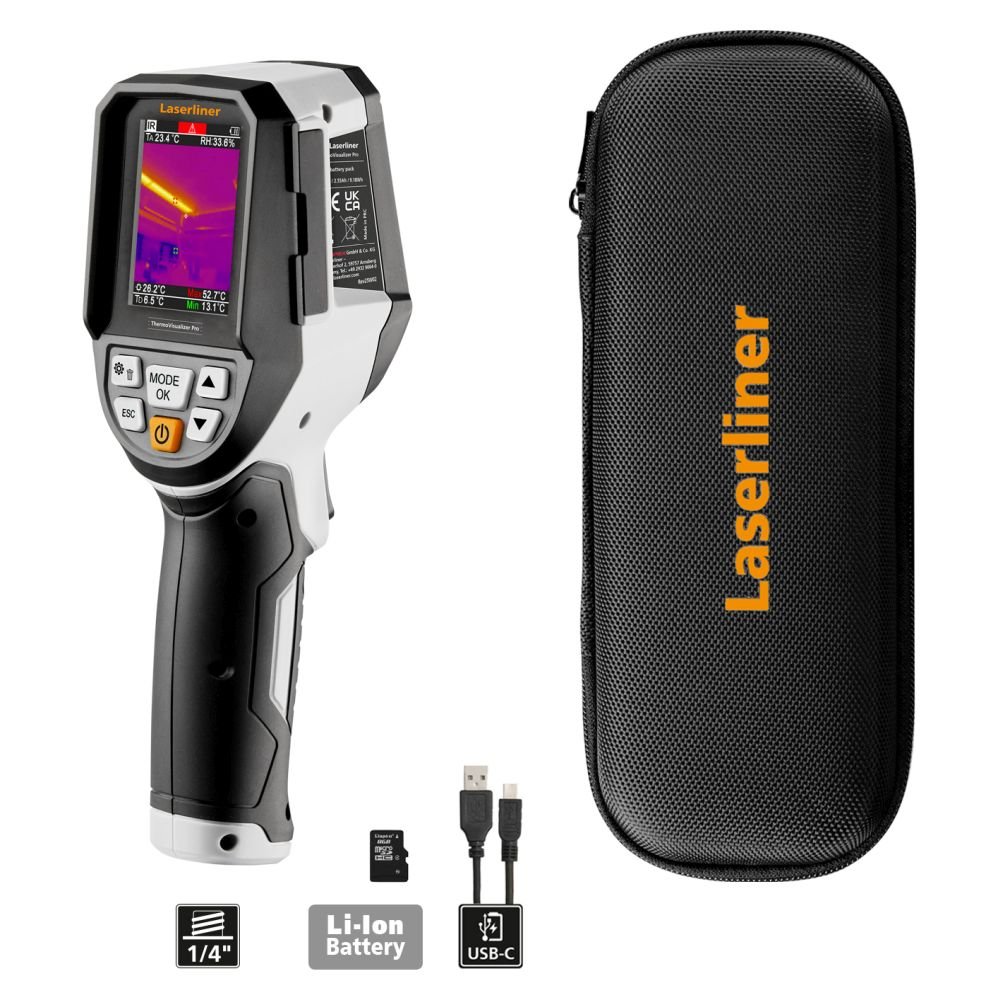

Scope of delivery
- ThermoVisualizer Pro
- micro SD card
- Integrated Li-ion battery pack
- USB-C-cable
- softbag
